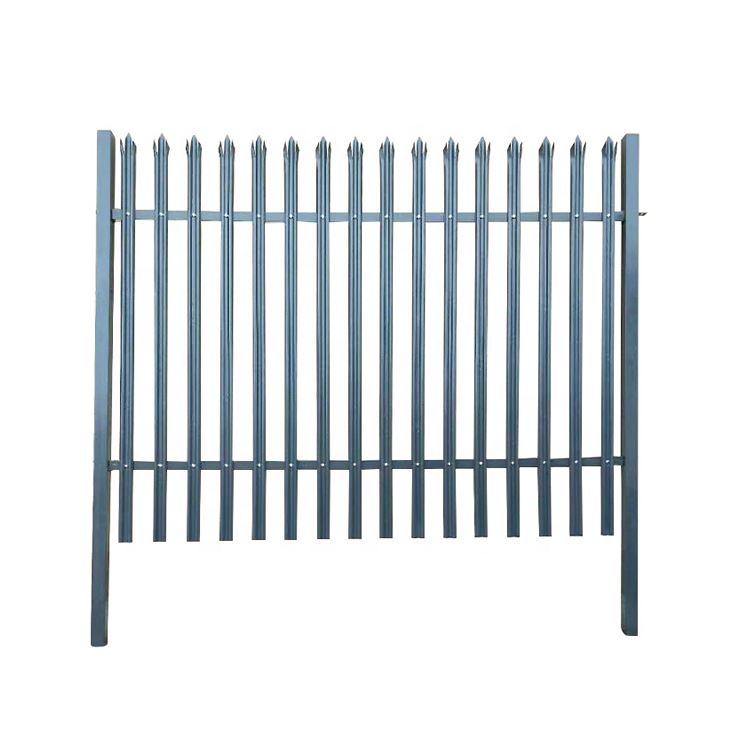

Palisade Fence
HIGH:2400MM WIDTH:2750MM
PRE-PUNCHED ANGLE BEAM RAILS:50X50X6MM 2PCS
PAILINGS:ROLLED BEFORE96X3MM 17PCS
H BEAM POST:55X100X3.0MM HIGH:3000MM 1 PCS
M8*25MM BOLT M12*30MM
CONNECT:140X40X8MM
HOT DIPPED GALVANIZEDAFTER FABRICATION 500g

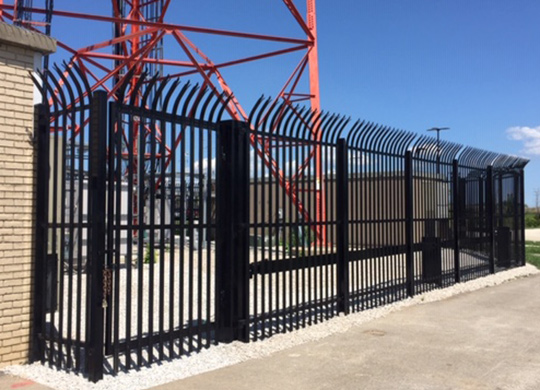

High security Signal base station powder coated W Section triple pointed Metal palisade fence
Specifications
palisade fencing panels D section palisade fencing W section palisade fencing high security palisade fencing
Palisade fencing
Standad UK BS1722 Part 12:2006.
Palisade Fencing Pale Section Type :
1). Pales-"D" section
2). Pales-"W" section
Palisade Fencing Pale Sizes
2mm, 3mm, 3.5mm thick ‘D’ section
2mm, 2.5mm thick ‘W’ section are the standard.
triple pointed or rounded and notched top.
17no per 2.75m bay.
Palisade Fencing Post
100mm x 55mm RSJ
102mm x 44mm RSJ
127mm x 76mm RSJ
Depending on height of the fence. Posts installed at 2.75m centers.
Palisade Fencing Rails
Generally Angle Iron 50mm x 50mm x 6mm RSA - 2no per bay. 3no per bay in more secure areas.
Palisade Fencing Fixings
M12 permacone nuts and bolts connect the rails to a fish plate that slides through slots in the posts
M12 Cup square bolts with Permacone type nuts (shear off)
Palisade Fencing Height
900mm (3ft), 1.2m (4ft), 1.5m (5ft), 1.8m (6ft), 2m (6ft 6), 2.1m (7ft), 2.4m (8ft), 2.75m (9ft) 3m (10ft) and 3.6m (12ft)
Normal size:HIGH:2400MM WIDTH:2750MM
PRE-PUNCHED ANGLE BEAM RAILS:50X50X6MM 2PCS
PAILINGS:ROLLED BEFORE 96X3MM 17PCS
H BEAM POST:55X100X3.0MM HIGH:3000MM 1 PCS
M8*25MM BOLT M12*30MM
CONNECT:140X40X8MM
Palisade Fencing Finish Surface
Hot Dipped Galvanised to B.S EN ISO 1461 as standard.300-500g/m2
There is also a option for the fence to be Polyester Powder Coated to a colour or you choice
Palisade Fencing Gate
Single Leaf, Double Leaf and Sliding Gates are all available made to measure.
